16x16 LED Matrix Display

16x16 LED Matrix Display

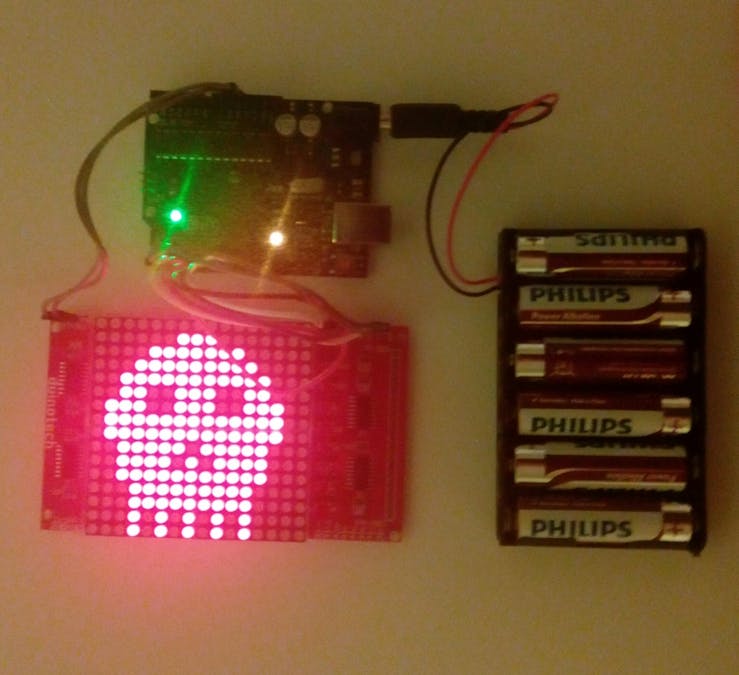

A 16x16 LED display matrix that can display any 16x16 pixel image.

  • 4,319 views
  • 2 comments
  • 13 respects

Components and supplies

Apps and online services

About this project

I made this project as a step up from my previous project (Simple LED Light Show). I have not yet to achieve making animations and games with this project but will hopefully post about it in the future.

The code is simple and allows for anyone to program it to display any picture they can dream of. All one has to do is replace (1,) with a (0,) in the shape of what you want to display.

Code

Code for Dot MatrixC/C++
The code for a blank scene on the dot matrix (this needs to be modified for anything to show up on the matrix
/**
 *
   This program is free software: you can redistribute it and/or modify
    it under the terms of the GNU General Public License as published by
    the Free Software Foundation, either version 3 of the License, or
    (at your option) any later version.
    This program is distributed in the hope that it will be useful,
    but WITHOUT ANY WARRANTY; without even the implied warranty of
    MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
    GNU General Public License for more details.
    You should have received a copy of the GNU General Public License
    along with this program.  If not, see <http://www.gnu.org/licenses/>.
 */

#include <Arduino.h>

//IO
#define LEDARRAY_D 2
#define LEDARRAY_C 3
#define LEDARRAY_B 4
#define LEDARRAY_A 5
#define LEDARRAY_G 6
#define LEDARRAY_DI 7
#define LEDARRAY_CLK 8
#define LEDARRAY_LAT 9


unsigned char Display_Buffer[2];

unsigned int Word1[32];

//here you'll draw the scene in your screen
unsigned char  Scene[16][16] =
{
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
  {1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1, 1},
};

void SceneToWord(){
  int i, k, key = 0;
  unsigned int value;
  for(i = 0; i < 16; i++){
    for(k = 0; k < 16; k++){
      if(i < 8){
        value = Scene[i][k] << (7 - i);
        Word1[15 - k] += value;
      } else {
        value = Scene[i][k] << (15 - i);
        Word1[31 - k] += value;
      }
    }
  }
}

void setup() {
  pinMode(LEDARRAY_D, OUTPUT);
  pinMode(LEDARRAY_C, OUTPUT);
  pinMode(LEDARRAY_B, OUTPUT);
  pinMode(LEDARRAY_A, OUTPUT);
  pinMode(LEDARRAY_G, OUTPUT);
  pinMode(LEDARRAY_DI, OUTPUT);
  pinMode(LEDARRAY_CLK, OUTPUT);
  pinMode(LEDARRAY_LAT, OUTPUT);
  Serial.begin(9600);
}

//************************************************************

//*************************************************************
void Display(unsigned int dat[])  {
  unsigned char i;

  for( i = 0 ; i < 16 ; i++ )
  {
    digitalWrite(LEDARRAY_G, HIGH);

    Display_Buffer[0] = dat[i];
    Display_Buffer[1] = dat[i+16];

    Send(Display_Buffer[1]);
    Send(Display_Buffer[0]);

    digitalWrite(LEDARRAY_LAT, HIGH);
    delayMicroseconds(1);

    digitalWrite(LEDARRAY_LAT, LOW);
    delayMicroseconds(1);

    Scan_Line(i);

    digitalWrite(LEDARRAY_G, LOW);

    delayMicroseconds(100);
  }
}


//****************************************************

//****************************************************
void Scan_Line( unsigned int m) {
  switch(m)
  {
    case 0:
      digitalWrite(LEDARRAY_D, LOW);digitalWrite(LEDARRAY_C, LOW);digitalWrite(LEDARRAY_B, LOW);digitalWrite(LEDARRAY_A, LOW);
      break;
    case 1:
      digitalWrite(LEDARRAY_D, LOW);digitalWrite(LEDARRAY_C, LOW);digitalWrite(LEDARRAY_B, LOW);digitalWrite(LEDARRAY_A, HIGH);
      break;
    case 2:
      digitalWrite(LEDARRAY_D, LOW);digitalWrite(LEDARRAY_C, LOW);digitalWrite(LEDARRAY_B, HIGH);digitalWrite(LEDARRAY_A, LOW);
      break;
    case 3:
      digitalWrite(LEDARRAY_D, LOW);digitalWrite(LEDARRAY_C, LOW);digitalWrite(LEDARRAY_B, HIGH);digitalWrite(LEDARRAY_A, HIGH);
      break;
    case 4:
      digitalWrite(LEDARRAY_D, LOW);digitalWrite(LEDARRAY_C, HIGH);digitalWrite(LEDARRAY_B, LOW);digitalWrite(LEDARRAY_A, LOW);
      break;
    case 5:
      digitalWrite(LEDARRAY_D, LOW);digitalWrite(LEDARRAY_C, HIGH);digitalWrite(LEDARRAY_B, LOW);digitalWrite(LEDARRAY_A, HIGH);
      break;
    case 6:
      digitalWrite(LEDARRAY_D, LOW);digitalWrite(LEDARRAY_C, HIGH);digitalWrite(LEDARRAY_B, HIGH);digitalWrite(LEDARRAY_A, LOW);
      break;
    case 7:
      digitalWrite(LEDARRAY_D, LOW);digitalWrite(LEDARRAY_C, HIGH);digitalWrite(LEDARRAY_B, HIGH);digitalWrite(LEDARRAY_A, HIGH);
      break;
    case 8:
      digitalWrite(LEDARRAY_D, HIGH);digitalWrite(LEDARRAY_C, LOW);digitalWrite(LEDARRAY_B, LOW);digitalWrite(LEDARRAY_A, LOW);
      break;
    case 9:
      digitalWrite(LEDARRAY_D, HIGH);digitalWrite(LEDARRAY_C, LOW);digitalWrite(LEDARRAY_B, LOW);digitalWrite(LEDARRAY_A, HIGH);
      break;
    case 10:
      digitalWrite(LEDARRAY_D, HIGH);digitalWrite(LEDARRAY_C, LOW);digitalWrite(LEDARRAY_B, HIGH);digitalWrite(LEDARRAY_A, LOW);
      break;
    case 11:
      digitalWrite(LEDARRAY_D, HIGH);digitalWrite(LEDARRAY_C, LOW);digitalWrite(LEDARRAY_B, HIGH);digitalWrite(LEDARRAY_A, HIGH);
      break;
    case 12:
      digitalWrite(LEDARRAY_D, HIGH);digitalWrite(LEDARRAY_C, HIGH);digitalWrite(LEDARRAY_B, LOW);digitalWrite(LEDARRAY_A, LOW);
      break;
    case 13:
      digitalWrite(LEDARRAY_D, HIGH);digitalWrite(LEDARRAY_C, HIGH);digitalWrite(LEDARRAY_B, LOW);digitalWrite(LEDARRAY_A, HIGH);
      break;
    case 14:
      digitalWrite(LEDARRAY_D, HIGH);digitalWrite(LEDARRAY_C, HIGH);digitalWrite(LEDARRAY_B, HIGH);digitalWrite(LEDARRAY_A, LOW);
      break;
    case 15:
      digitalWrite(LEDARRAY_D, HIGH);digitalWrite(LEDARRAY_C, HIGH);digitalWrite(LEDARRAY_B, HIGH);digitalWrite(LEDARRAY_A, HIGH);
      break;
    default : break;
  }
}

//****************************************************

//****************************************************
void Send( unsigned int dat) {
  unsigned char i;
  digitalWrite(LEDARRAY_CLK, LOW);
  delayMicroseconds(1);;
  digitalWrite(LEDARRAY_LAT, LOW);
  delayMicroseconds(1);;

  for( i = 0 ; i < 8 ; i++ )
  {
    if( dat&0x01 )
    {
      digitalWrite(LEDARRAY_DI, HIGH);
    }
    else
    {
      digitalWrite(LEDARRAY_DI, LOW);
    }

    delayMicroseconds(1);
    digitalWrite(LEDARRAY_CLK, HIGH);
      delayMicroseconds(1);
    digitalWrite(LEDARRAY_CLK, LOW);
      delayMicroseconds(1);
    dat >>= 1;

  }
}



void loop() {
  update();
  Display(Word1);
}

void update(){
  clearWord();
  SceneToWord();
}

void clearWord(){
  for(int i = 0; i < 32; i++)
    Word1[i] = 0;
}

Schematics

Dot Matrix to Uno DIagram
It is a diagram of how to wire up the dot matrix to the uno board
Led1616 qbpfjjhl7a
