Project in progress
Control Speed and Direction of Motor

Control Speed and Direction of Motor

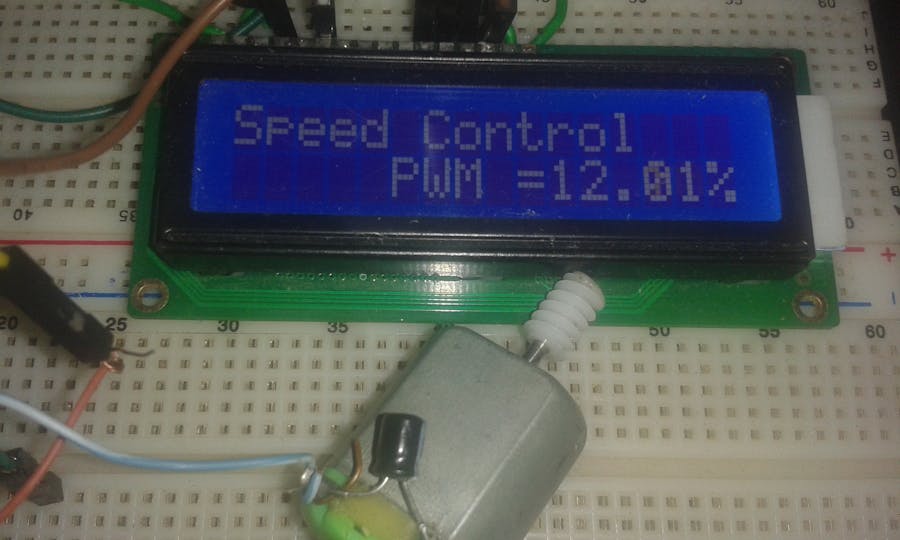

Use l298 motor driver to control speed and direction of DC motor and show them in LCD.

  • 17,414 views
  • 5 comments
  • 25 respects

Components and supplies

About this project

Code

Code of speedArduino
It contain Hardware connections
#include <LiquidCrystal.h>
LiquidCrystal lcd(13, 12, 11, 10, 9, 8);

//pin 1 in  LCD 1 >>>>>>>>>>>>> ground
//pin 2 in  LCD 2 >>>>>>>>>>>>> vcc
//pin 3 in  LCD 3 >>>>>>>>>>>>> ground
//pin 4 in  LCD 4 >>>>>>>>>>>>> 13
//pin 5 in  LCD 5>>>>>>>>>>>>> ground                               // LCD connection
//pin 6 in  LCD 6 >>>>>>>>>>>>> 12
//pin 7 in  LCD 7 >>>>>>>>>>>>> NO
//pin 8 in  LCD 8 >>>>>>>>>>>>> NO
//pin 9 in  LCD 9 >>>>>>>>>>>>> NO
//pin 10 in LCD 10 >>>>>>>>>>>>> NO
//pin 11 in LCD 11  >>>>>>>>>>>>> 11
//pin 12 in LCD 12 >>>>>>>>>>>>> 10
//pin 13 in LCD 13 >>>>>>>>>>>>> 9
//pin 14 in LCD 14 >>>>>>>>>>>>> 8
//pin 15 in LCD 15 >>>>>>>>>>>> vcc
//pin 16 in LCD 16 >>>>>>>>>>>  ground
//******************************************************************************************************
const int In1 = A1;     //pin  5 in lm298 >>>>>>>> A1 in arduino
const int In2 = 7;      //pin  7 in lm298 >>>>>>>> 7 in arduino           // L298 motor driver connection
const int En = 6;       //pin  6 in lm298 >>>>>>>> 6(PWM) in arduino
                        // pin 2 in l298  >>>>>>>> Motor pin
                        // pin 3 in l298  >>>>>>>> Motor pin
                        // pin 9  in l298  >>>>>>>>> 5 volt
                        // pin 4  in l298  >>>>>>>>> Motor voltage
                        //pin  8  in l298  >>>>>>>>> ground
//**********************************************************************************************************
const int Pot = A0;        //pin at middle in variable resistance >>>>>>>> A0 in arduino          // variable resistance  connection
                           // others pin to VCC & Ground
//**************************************************************************************************************
const int SW = 5;          //vcc (5 Volt )  switch for direction with (resistance 10 k to ground )  >>>>>>>>>>>> 5 in arduino     // switch connection

//**********************************************************************************************************************
const int red_led = 2;      // led with resistance 330 ohm to >>>>>>>>>> 2 in arduino
const int yellow_led = 3;   // led with resistance 330 ohm to >>>>>>>>>> 3 in arduino                 //LED connection
const int green_led = 4;   // led with resistance 330 ohm to >>>>>>>>>> 4 in arduino
//***********************************************************************************************************************
volatile float pot_read = 0.0;
volatile int i = 0;
int flag = 1;
//**********************************************************************************************
void red() {
  digitalWrite(red_led, HIGH);                         // open RED LED
  digitalWrite(yellow_led, LOW);
  digitalWrite(green_led, LOW);
}
//*********************************************
void yellow() {
  digitalWrite(red_led, LOW);                           // open yellow LED
  digitalWrite(yellow_led, HIGH);
  digitalWrite(green_led, LOW);
}
//**********************************************************************************
void green() {
  digitalWrite(red_led, LOW);                                 // open Green  LED
  digitalWrite(yellow_led, LOW);
  digitalWrite(green_led, HIGH);
}
//*****************************************************************************
void CW() {
  digitalWrite(In1, HIGH);
  digitalWrite(In2, LOW);                                   // Make motor run in Clock wise direction
  Serial.println(" Clock Wise ");
}
//*********************************************************************************
void CCW() {
  digitalWrite(In2, HIGH);
  digitalWrite(In1, LOW);                                           // Make motor run in counter  Clock wise direction
  Serial.println("counter Clock Wise ");
}
//****************************************************************************
void STP() {
  digitalWrite(In1, LOW);
  digitalWrite(In2, LOW);                                         // Make motor STOP
  Serial.println(" STOP ");
}
//************************************************************************************
//Make input and output pins
void setup() {
  // put your setup code here, to run once:
  lcd.begin(16, 2);
   lcd.print("Speed Control");
  delay(1000);
  pinMode(In1, OUTPUT);
  pinMode(In2, OUTPUT);
  pinMode(En, OUTPUT);
  pinMode(red_led, OUTPUT);
  pinMode(yellow_led, OUTPUT);
  pinMode(green_led , OUTPUT);
  pinMode(SW, INPUT);
  pinMode(Pot, INPUT);
  Serial.begin(9600);
}
//*******************************************************************************
void loop() {
  pot_read = analogRead(Pot);                            // read variable resistance
  pot_read = pot_read / 4.0;
  pot_read = pot_read / 254.0;
  pot_read = pot_read * 100.0;

  delay(20);

  analogWrite(En, pot_read);
  lcd.setCursor(5, 1);

  lcd.print("PWM =");
  lcd.print(pot_read);
  lcd.print("%");


  Serial.print("PWM =");
  Serial.print(pot_read);


  Serial.println("%");

  //  Serial.print(" pot_read= ");
  //  Serial.println( pot_read );

  if (digitalRead(SW) == 1)
  {
    i++;
    switch (i)
    {
      case 1:
        CW();
        lcd.setCursor(0, 1);

        lcd.print(" CW");

        green();
        Serial.println(" Clock Wise ");
        break;
      case 2:
        CCW();
        lcd.setCursor(0, 1);

        lcd.print("CCW");
        yellow();
        Serial.println("counter Clock Wise ");
        break;
      case 3:
        STP();
        red();
        lcd.setCursor(0, 1);

        lcd.print("STP");
        Serial.println(" STOP ");
        i = 0;
        break;
    }
    while (digitalRead(SW) == 1);
  }

}

Schematics

Circuit
Connection of hardware
Untitled%20sketch schem
