Bluetooth-Controlled Car

Bluetooth-Controlled Car © GPL3+

How to make a Bluetooth-controlled car.

  • 2,843 views
  • 1 comment
  • 8 respects

Components and supplies

About this project

Hi.

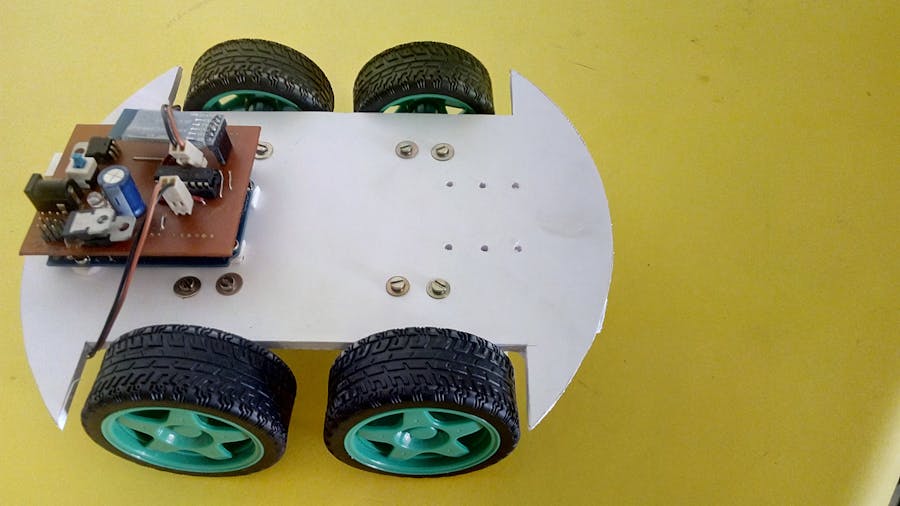

I am making a Bluetooth-controlled robot using Arduino Uno and a shield made by me. The app for the robot I have made using MIT App Inventor and you can find the app in MIT App Inventor 2 gallery under the name "robogear". These two videos will show you things step by step.

Code

BLUETOOTH CONTROL CAR CODEC/C++
ARDUINO CODE FOR BLUETOOTH CONTROL CODE
#define LMP  2
#define LMN  4
#define RMP  7
#define RMN  5


int firstSensor = 0;         // first analog sensor
int secondSensor = 0;    // second analog sensor
int thirdSensor = 0;        // digital sensor
int inByte = 0;               // incoming serial byte
char BYTE;
boolean status_unlock;
boolean status_bluetooth;

long interval = 1000;           // interval at which to blink (milliseconds)
long previousMillis = 0;        // will store last time LED was update
int minite,sec;


void setup()
{
  // start serial port at 9600 bps:
  Serial.begin(9600);
  //pinMode(2, INPUT);   // digital sensor is on digital pin 2
  establishContact();    // send a byte to establish contact until receiver responds

  pinMode(LMP, OUTPUT);
  pinMode(LMN, OUTPUT);
  pinMode(RMP, OUTPUT);
  pinMode(RMN, OUTPUT);



  digitalWrite(LMP, LOW);  // switch off MOTOR
  digitalWrite(LMN, LOW);  // switch off MOTOR
  digitalWrite(RMP, LOW);  // switch off MOTOR
  digitalWrite(RMN, LOW);  // switch off MOTOR


  status_bluetooth = true;
  status_unlock = false;
  sec = 0;
}

void loop()
{
  if (Serial.available() > 0)
  {

    inByte = Serial.read();                      // get incoming byte:

 if(inByte == 'A')
    {
      digitalWrite(LMP, HIGH);
      digitalWrite(LMN, LOW);
      digitalWrite(RMP, HIGH);
      digitalWrite(RMN, LOW);

      inByte = 0;
    }

    if(inByte == 'B')
    {
      digitalWrite(LMP, LOW);
      digitalWrite(LMN, HIGH);
      digitalWrite(RMP, LOW);
      digitalWrite(RMN, HIGH);


      inByte = 0;
    }

    if(inByte == 'D')
    {
       digitalWrite(LMP, HIGH);
      digitalWrite(LMN, LOW);
      digitalWrite(RMP, LOW);
      digitalWrite(RMN, LOW);

      inByte = 0;
    }

   if(inByte == 'C')
    {
      digitalWrite(LMP, LOW);
      digitalWrite(LMN, LOW);
      digitalWrite(RMP, HIGH);
      digitalWrite(RMN, LOW);

      Serial.print('D', BYTE);
      inByte = 0;
    }

    if(inByte == 'E')
    {
      digitalWrite(LMP, LOW);
      digitalWrite(LMN, LOW);
      digitalWrite(RMP, LOW);
      digitalWrite(RMN, LOW);


      Serial.print('E', BYTE);
      inByte = 0;
    }

  if(inByte == 'G')
    {
     digitalWrite(LMP, HIGH);
      digitalWrite(LMN, LOW);
      digitalWrite(RMP, LOW);
      digitalWrite(RMN, HIGH);

      inByte = 0;
    }

    if(inByte == 'F'){
       digitalWrite(LMP, LOW);
      digitalWrite(LMN, HIGH);
      digitalWrite(RMP, HIGH);
      digitalWrite(RMN, LOW);


      Serial.print('G', BYTE);
      inByte = 0;
    }



    if(inByte == 'S'){

      Serial.print('S', BYTE);                  // send a char
      status_bluetooth = true;
      sec = 0;

    }
  } // if(Serial

  /*
  unsigned long currentMillis = millis();

              if(currentMillis - previousMillis > interval) {
                previousMillis = currentMillis;         // save the last time you blinked the LED

                sec++;

                if(status_unlock==true){

                  if(sec== 11){

                      digitalWrite(LED_PIN1, HIGH);        // switch on LED

                      delay(800);
                      digitalWrite(LED_PIN1, LOW);        // switch off LED

                      status_unlock = false;
                      sec = 0;
                  }
                }
                else sec = 0;

              }

 */

} //Loop

void establishContact() {
  while (Serial.available() <= 0) {
    Serial.print('.', BYTE);                   // send a capital A
    delay(500);
  }
}

Schematics

circuit design of bluetooth control car
its all about schematic diagram of connecting arduino + l293d + hc 05 with a robot car
Fritzing j045vsxmie
