Project in progress
LED RF Entryphone Coconut Build

LED RF Entryphone Coconut Build © MIT

Meant to be used at a music studio where the sudden sound of the entryphone could be fatal to your recordings but you still ordered pizza.

  • 880 views
  • 0 comments
  • 2 respects

Components and supplies

11113 01
SparkFun Arduino Pro Mini 328 - 5V/16MHz
one for each coconut , in my case one emmiter and two receivers
×3
Radio 433mhz modules
one emmiter and two receivers, so we need to buy at least two couples
×2
Kingbright wp7113srd d image
5 mm LED: Red
a lot of red diodes, as you wish, maybe you want to do it with another colour, rgb stripes....etc
×15
Adafruit industries ada63 image 75px
9V 1A Switching Wall Power Supply
or 9v batteries
×3
coconut
×1
Theblankslate grande
Modulo Blank Slate
any generic circuit plate
×1
usb to ttl arduino serial converter
to charge the program into arduino pro mini, if you ude other arduino microcontroler like arduino nano this converter its no needed
×1
Fairchild pn2907abu.
General Purpose Transistor PNP
to control de diodes
×6
Mfr 25fbf52 221r sml
Resistor 221 ohm
for the transistor base handling by the arduino outputs
×6

Necessary tools and machines

dremel
or whatever you want to cut in half the bloody coconut
09507 01
Soldering iron (generic)
to join wires
Hy gluegun
Hot glue gun (generic)
to keep all together

Apps and online services

About this project

Overview

If you have an studio or want to get your entryphone wireless and light related (for deaf people, noisy places, etc.) this may be the cheapest way to do it.

This is an Arduino Pro Mini with a basic cheapest Rx-Tx 433mhz modules, then a lot of red LEDs. To read the entryphone ringing signal, we need to build a little Op Amplifier circuit to read current and transform to voltage.

Why do I need that, I want to plug wires!

When the buzz device is off there is an open circuit with no reliable voltage sense, so we need to do a current measure.

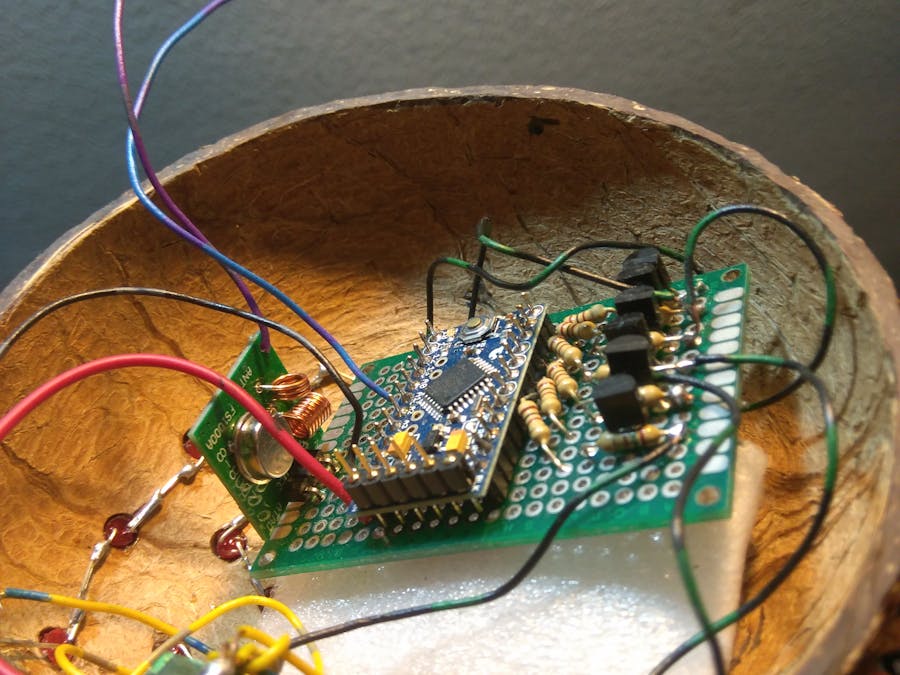

I built a coconut emitter (principal photo) which is placed and wired to the entryphone and then a couple of coconut receivers in different rooms, they are powered by 9V transformer but you could use from 5 to 12v (batteries).

Code

Transmmiter module (TX)C/C++
senses the entryphone ringing signal and send Radio message
#include <VirtualWire.h>
#define DEBUG
#define ringanalogpin A0
#define TX 12
#define HUMBRAL 200 //0-5v 0-1023... 200-->1volt humbral sensing
char datagrama[7]={"FFFFFF"};
char llaman[7]={"LLAMAN"};
char idle [7]={"-NADA-"};

void setup() {
  #ifdef DEBUG//if debug is defined compile and go with the serial thing for monitoring from the arduino IDE
 Serial.begin(9600);
 #endif
   pinMode(TX, OUTPUT);
  vw_set_tx_pin(TX);          // Configura el pin  como TX
  vw_set_ptt_inverted(true);  // Requerido para DR3100
  vw_setup(2000);             // Bits por segundo

  //leds y analog input
  pinMode(4,OUTPUT);
  pinMode(5,OUTPUT);
  pinMode(6,OUTPUT);
  pinMode(7,OUTPUT);
  pinMode(8,OUTPUT);
  pinMode(9,OUTPUT);
  pinMode(A0,INPUT);

   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);

//pequeño TEST de transmision tras el reset
 vw_send((uint8_t *)llaman, strlen(llaman));//shot the message to the RX modules
 vw_wait_tx(); // Wait until the whole message is gone

}

void loop() {


if(analogRead(ringanalogpin)>=HUMBRAL)//if analogpin detects door ringing do stuff
{
strcpy(datagrama,llaman);//load the datagrama array "shhck ch!"(shotgun noise)
 digitalWrite(13, HIGH); // Turn on a light to show transmitting
 vw_send((uint8_t *)datagrama, strlen(datagrama));//shot the message to the RX modules
 vw_wait_tx(); // Wait until the whole message is gone
 delay(50);
 digitalWrite(13, LOW); // Turn off a light after transmission
 doorisringingmotherfucker();//blink effects

}

else//if nothing is happening
{
strcpy(datagrama,idle);//send idle state to the RX modules
   digitalWrite(4,HIGH);//every light is turned off
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
}




#ifdef DEBUG //if debug is defined compile and go with the serial thing for monitoring from the arduino IDE
Serial.print("Value picked by the analog input");
Serial.print(analogRead(ringanalogpin));
Serial.print("   Datagrama");
Serial.println(datagrama);
 #endif

}

void doorisringingmotherfucker()//friendly blinking lights function, nice dancing effect and then all blinking
{

   delay(30);
   digitalWrite(4,LOW);
   delay(30);
   digitalWrite(4,HIGH);
   delay(30);
   digitalWrite(5,LOW);
   delay(30);
   digitalWrite(5,HIGH);
      delay(30);
   digitalWrite(6,LOW);
   delay(30);
   digitalWrite(6,HIGH);
      delay(30);
   digitalWrite(7,LOW);
   delay(30);
   digitalWrite(7,HIGH);
      delay(30);
   digitalWrite(8,LOW);
   delay(30);
   digitalWrite(8,HIGH);
      delay(30);
   digitalWrite(9,LOW);
   delay(30);
   digitalWrite(4,LOW);
   delay(30);
   digitalWrite(4,HIGH);
   delay(30);
   digitalWrite(5,LOW);
   delay(30);
   digitalWrite(5,HIGH);
      delay(30);
   digitalWrite(6,LOW);
   delay(30);
   digitalWrite(6,HIGH);
      delay(30);
   digitalWrite(7,LOW);
   delay(30);
   digitalWrite(7,HIGH);
      delay(30);
   digitalWrite(8,LOW);
   delay(30);
   digitalWrite(4,LOW);
   delay(30);
   digitalWrite(4,HIGH);
   delay(30);
   digitalWrite(5,LOW);
   delay(30);
   digitalWrite(5,HIGH);
      delay(30);
   digitalWrite(6,LOW);
   delay(30);
   digitalWrite(6,HIGH);
      delay(30);
   digitalWrite(7,LOW);
      delay(30);
      digitalWrite(4,LOW);
   delay(30);
   digitalWrite(4,HIGH);
   delay(30);
   digitalWrite(5,LOW);
   delay(30);
   digitalWrite(5,HIGH);
      delay(30);
   digitalWrite(6,LOW);
      delay(30);
   digitalWrite(4,LOW);
   delay(30);
   digitalWrite(4,HIGH);
   delay(30);
   digitalWrite(5,LOW);
      delay(30);
         digitalWrite(4,LOW);
   delay(200);
   digitalWrite(4,LOW);//it could had been done smarter, yes but i dont care
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
   digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
      delay(200);
   digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
   digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
      digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
      digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
      digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
      digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
   digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(30);
   digitalWrite(4,LOW);
   delay(30);
   digitalWrite(4,HIGH);
   delay(30);
   digitalWrite(5,LOW);
   delay(30);
   digitalWrite(5,HIGH);
      delay(30);
   digitalWrite(6,LOW);
   delay(30);
   digitalWrite(6,HIGH);
      delay(30);
   digitalWrite(7,LOW);
   delay(30);
   digitalWrite(7,HIGH);
      delay(30);
   digitalWrite(8,LOW);
   delay(30);
   digitalWrite(8,HIGH);
      delay(30);
   digitalWrite(9,LOW);
   delay(30);
   digitalWrite(9,HIGH);

}

Receiver(RX), much simplerC/C++
#include <VirtualWire.h>
#define DEBUG
#define RX 12
char datagrama[7]={"FFFFFF"};


void setup() {
#ifdef DEBUG//if debug is defined compile and go with the serial thing for monitoring from the arduino IDE
 Serial.begin(9600);
 #endif
   pinMode(RX, OUTPUT);
  vw_set_tx_pin(RX);          // Configura el pin  como TX
  vw_set_ptt_inverted(true);  // Requerido para DR3100
  vw_setup(2000);             // Bits por segundo

  //leds y analog input
  pinMode(4,OUTPUT);
  pinMode(5,OUTPUT);
  pinMode(6,OUTPUT);
  pinMode(7,OUTPUT);
  pinMode(8,OUTPUT);
  pinMode(9,OUTPUT);
  pinMode(A0,INPUT);

   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);

}
void loop() {
    uint8_t buf[VW_MAX_MESSAGE_LEN];
    uint8_t buflen = VW_MAX_MESSAGE_LEN;

    // Non-blocking
    if (vw_get_message(buf, &buflen))//message received
    {
    int i;

           // Message with a good checksum received, dump it.
        for (i = 0; i < buflen; i++)
    {
          // Fill datagrama Char array with corresponding
          // chars from buffer.
          datagrama[i] = char(buf[i]);
    }

        datagrama[buflen] = '\0';
    }

    if(datagrama=="LLAMAN")
    {
      doorisringingmotherfucker();
    }

   if(datagrama=="-NADA-")
   {
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   }

    if(datagrama=="FFFFFF")
   {
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   }
#ifdef DEBUG
Serial.print("Datagrama recibido:");
Serial.println(datagrama);
#endif
 delay(1000);
}

void doorisringingmotherfucker()//friendly blinking lights function, nice dancing effect and then all blinking
{

   delay(30);
   digitalWrite(4,LOW);
   delay(30);
   digitalWrite(4,HIGH);
   delay(30);
   digitalWrite(5,LOW);
   delay(30);
   digitalWrite(5,HIGH);
      delay(30);
   digitalWrite(6,LOW);
   delay(30);
   digitalWrite(6,HIGH);
      delay(30);
   digitalWrite(7,LOW);
   delay(30);
   digitalWrite(7,HIGH);
      delay(30);
   digitalWrite(8,LOW);
   delay(30);
   digitalWrite(8,HIGH);
      delay(30);
   digitalWrite(9,LOW);
   delay(30);
   digitalWrite(4,LOW);
   delay(30);
   digitalWrite(4,HIGH);
   delay(30);
   digitalWrite(5,LOW);
   delay(30);
   digitalWrite(5,HIGH);
      delay(30);
   digitalWrite(6,LOW);
   delay(30);
   digitalWrite(6,HIGH);
      delay(30);
   digitalWrite(7,LOW);
   delay(30);
   digitalWrite(7,HIGH);
      delay(30);
   digitalWrite(8,LOW);
   delay(30);
   digitalWrite(4,LOW);
   delay(30);
   digitalWrite(4,HIGH);
   delay(30);
   digitalWrite(5,LOW);
   delay(30);
   digitalWrite(5,HIGH);
      delay(30);
   digitalWrite(6,LOW);
   delay(30);
   digitalWrite(6,HIGH);
      delay(30);
   digitalWrite(7,LOW);
      delay(30);
      digitalWrite(4,LOW);
   delay(30);
   digitalWrite(4,HIGH);
   delay(30);
   digitalWrite(5,LOW);
   delay(30);
   digitalWrite(5,HIGH);
      delay(30);
   digitalWrite(6,LOW);
      delay(30);
   digitalWrite(4,LOW);
   delay(30);
   digitalWrite(4,HIGH);
   delay(30);
   digitalWrite(5,LOW);
      delay(30);
         digitalWrite(4,LOW);
   delay(200);
   digitalWrite(4,LOW);//it could had been done smarter, yes but i dont care
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
   digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
      delay(200);
   digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
   digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
      digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
      digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
      digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
      digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(200);
   digitalWrite(4,LOW);
   digitalWrite(5,LOW);
   digitalWrite(6,LOW);
   digitalWrite(7,LOW);
   digitalWrite(8,LOW);
   digitalWrite(9,LOW);
   delay(200);
   digitalWrite(4,HIGH);
   digitalWrite(5,HIGH);
   digitalWrite(6,HIGH);
   digitalWrite(7,HIGH);
   digitalWrite(8,HIGH);
   digitalWrite(9,HIGH);
   delay(30);
   digitalWrite(4,LOW);
   delay(30);
   digitalWrite(4,HIGH);
   delay(30);
   digitalWrite(5,LOW);
   delay(30);
   digitalWrite(5,HIGH);
      delay(30);
   digitalWrite(6,LOW);
   delay(30);
   digitalWrite(6,HIGH);
      delay(30);
   digitalWrite(7,LOW);
   delay(30);
   digitalWrite(7,HIGH);
      delay(30);
   digitalWrite(8,LOW);
   delay(30);
   digitalWrite(8,HIGH);
      delay(30);
   digitalWrite(9,LOW);
   delay(30);
   digitalWrite(9,HIGH);

}


Comments

Similar projects you might like

RFID Desk Lamp

Project tutorial by Kutluhan Aktar

  • 2,425 views
  • 0 comments
  • 9 respects

SMART Home LED Lighting System and More

Project in progress by Joey Pongallo

  • 7,578 views
  • 6 comments
  • 18 respects

Low Power RF Beacon for Remote Sensing & Communication

Project tutorial by Shahariar

  • 3,849 views
  • 1 comment
  • 17 respects

IoTrix (Smart Advertisement LED Board)

Project tutorial by Ravi Parmar

  • 2,946 views
  • 0 comments
  • 23 respects

The "Tennis Ball" Garage Stop Light

Project tutorial by Team Stuart Mace

  • 10,452 views
  • 2 comments
  • 36 respects

Playing "Flappy Bird" on an LED Matrix

Project tutorial by Arduino “having11” Guy

  • 2,942 views
  • 0 comments
  • 11 respects
Add projectSign up / Login
