Block Detection 3 Aspect Light Control

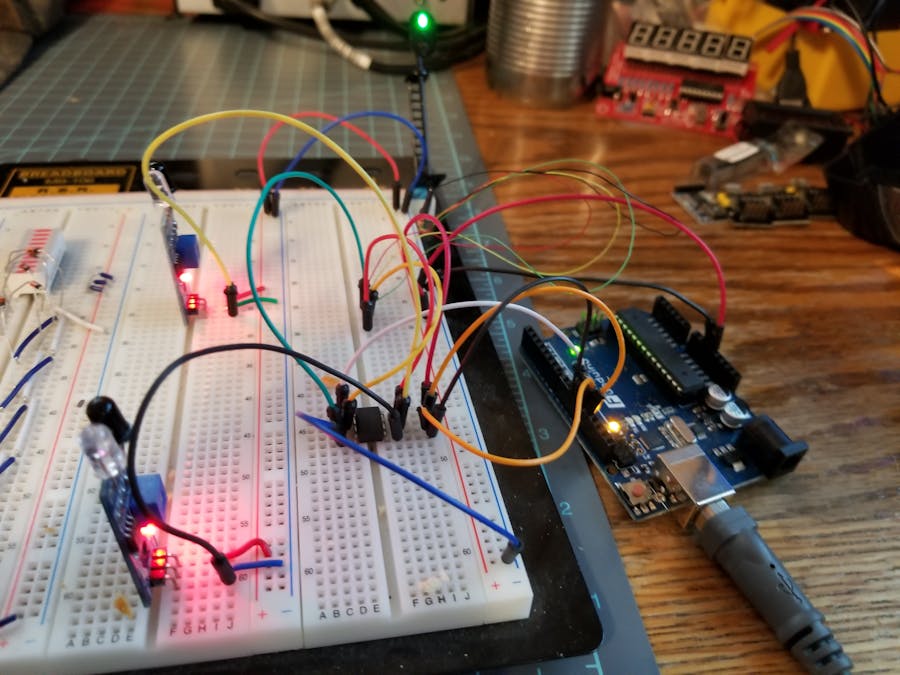

This is a simple IR sensor block detector for model railroads. It controls three lights: red, yellow and green.

Jun 28, 2017

•

9856 views

•

18 respects

train

traffic light

block

Components and supplies

Arduino UNO

Apps and platforms

Arduino IDE

Project description

Code

BLOCK DETECTION 3 ASPECT LIGHT CONTROL

arduino

This is my BLOCK DETECTION 3 ASPECT LIGHT CONTROL program. It detecets the train entering and leaving a block of track and changes the lights accordingly.

1// initilize the Digital input pins
2int sensePin1 = 7;
3int sensePin2  = 4;
4//Initilize the OUTPUT pins for the RED,GREEN and YELLOW lights.
5int  ledPinGRN = 10;
6int ledPinYEL = 11;
7int ledPinRED = 12;
8
9
10
11void  setup() {
12  analogReference(DEFAULT); //isn't necessary
13  Serial.begin(9600);
14  pinMode(ledPinGRN, OUTPUT);//Set pin MODES for lights
15  pinMode(ledPinYEL,  OUTPUT);//Set pin MODES for lights
16  pinMode(ledPinRED, OUTPUT);//Set pin MODES  for lights
17
18}
19
20enum LIGHTSTATES
21{
22  ST_GREEN,       // light green
23  ST_YELLOWFLASH, // light yellow flash
24  ST_YELLOW,      // yellow on for given  time
25  ST_RED,         // light red
26  ST_RED1,         // light red
27};
28
29//  state of statemachine for block 1; initial value green
30LIGHTSTATES block1State  = ST_GREEN;
31
32// current time
33static unsigned long currentTime;
34
35void  loop()
36{
37  // get current time
38  currentTime = millis();
39
40  // read  sensors
41
42  int valA1 = digitalRead(sensePin1);
43  int valA2 = digitalRead(sensePin2);
44
45
46  //Serial.print('valA1');
47  //Serial.println("");
48  //Serial.print('valA2');
49  //Serial.println("");
50   //Serial.println("");
51     //delay(1500);
52  switch (block1State)
53  {
54    // show green light
55    // we will switch  to red if sensors are triggered
56    case ST_GREEN:
57      block1Green(valA1,  valA2);
58      break;
59    case ST_YELLOWFLASH:
60      block1YellowFlash(valA1,  valA2);
61      break;
62    case ST_YELLOW:
63      block1Yellow(valA1, valA2);
64      break;
65    case ST_RED:
66      block1Red(valA1, valA2);
67      break;
68      case ST_RED1:
69      block1Red1(valA1, valA2);
70      break;
71  }
72}
73
74/*
75  switch green light on for block 1
76  'wait' for sensors to trigger and switches  to red
77  input: values of sensors A1 and A2
78*/
79void block1Green(int valA1,  int valA2)
80{
81  digitalWrite(ledPinGRN, LOW);
82  digitalWrite(ledPinYEL,  HIGH);
83  digitalWrite(ledPinRED, HIGH);
84
85  if (valA1 == LOW && valA2 ==  HIGH)
86  {
87    // change state to red
88    block1State = ST_RED;}
89  else  if (valA1 == HIGH && valA2 == LOW)
90  {
91    // change state to red
92    block1State  = ST_RED1;
93  }
94  }
95
96
97/*
98  flash yellow led 10 times for block  1
99  after that, switch to steady yellow
100  input: values of sensors A1 and  A2; both are not used but added for consistency in the calls to the light functions
101*/
102void  block1YellowFlash(int valA1, int valA2)
103{
104  // on and off duration
105  const  unsigned long duration = 500;
106  // number of flashes
107  const byte numFlashes  = 10;
108
109  // remember last time that we changed from 'yellow on' to 'yellow  off' or vice versa
110  static unsigned long startTime = 0;
111  // keep a counter  for the number of flashes
112  static byte counter = 0;
113
114  // if called after  coming from red
115  if (startTime == 0)
116  {
117    // switch yellow on
118    digitalWrite(ledPinGRN,  HIGH);
119    digitalWrite(ledPinYEL, LOW);
120    digitalWrite(ledPinRED, HIGH);
121
122    // start timing
123    startTime = currentTime;
124
125    // nothing else to  do
126    return;
127  }
128
129  // if it's time to toggle the yellow led
130  //  based on blink without delay
131  if (currentTime - startTime >= duration)
132  {
133    // set start time
134    startTime += duration;
135
136    // toggle the yellow  led
137    digitalWrite(ledPinYEL, !digitalRead(ledPinYEL));
138
139    // increment  the counter
140    counter++;
141  }
142
143  if (counter > numFlashes * 2)
144  {
145    // reset variables
146    // as a result, the next time this function  is called, the sequence is started from scratch
147    startTime = 0;
148    counter  = 0;
149
150    // change state to steady yellow
151    block1State = ST_YELLOW;
152  }
153}
154
155/*
156  switch yellow light on for N seconds for block 1
157  after  that, switch to green
158  input: values of sensors A1 and A2; both are not used  but added for consistency in the calls to the light functions
159*/
160void block1Yellow(int  valA1, int valA2)
161{
162  // duration for yellow on
163  const unsigned long duration  = 2000;
164  // start time of delay
165  static unsigned long startTime = 0;
166
167  if (startTime == 0)
168  {
169    // switch yellow on
170    digitalWrite(ledPinGRN,  HIGH);
171    digitalWrite(ledPinYEL, LOW);
172    digitalWrite(ledPinRED, HIGH);
173
174    // set start time of delay
175    startTime = currentTime;
176
177    // nothing  else to do
178    return;
179  }
180
181  // if N milliseconds passed
182  if (currentTime  - startTime >= duration)
183  {
184    // reset variables so next call to this sequence  will start sequence from scratch
185    startTime = 0;
186    // change state to  green
187    block1State = ST_GREEN;
188  }
189}
190
191/*
192  switch red light  on for block1
193  'wait' for sensors to trigger and switches to yellow flash
194  input: values of sensors A1 and A2
195*/
196void block1Red(int valA1, int valA2)
197{
198  digitalWrite(ledPinGRN, HIGH);
199  digitalWrite(ledPinYEL, HIGH);
200  digitalWrite(ledPinRED,  LOW);
201  if (valA1 == HIGH && valA2 == LOW)
202  {
203    // change state to yellow  flash
204    block1State = ST_YELLOWFLASH;
205  }
206}
207void block1Red1(int valA1,  int valA2)
208{
209  digitalWrite(ledPinGRN, HIGH);
210  digitalWrite(ledPinYEL,  HIGH);
211  digitalWrite(ledPinRED, LOW);
212  if (valA1 == LOW && valA2 == HIGH)
213  {
214    // change state to yellow flash
215    block1State = ST_YELLOWFLASH;
216  }
217
218}
219
220

// initilize the Digital input pins
int sensePin1 = 7;
int sensePin2  = 4;
//Initilize the OUTPUT pins for the RED,GREEN and YELLOW lights.
int  ledPinGRN = 10;
int ledPinYEL = 11;
int ledPinRED = 12;



void  setup() {
  analogReference(DEFAULT); //isn't necessary
  Serial.begin(9600);
  pinMode(ledPinGRN, OUTPUT);//Set pin MODES for lights
  pinMode(ledPinYEL,  OUTPUT);//Set pin MODES for lights
  pinMode(ledPinRED, OUTPUT);//Set pin MODES  for lights

}

enum LIGHTSTATES
{
  ST_GREEN,       // light green
  ST_YELLOWFLASH, // light yellow flash
  ST_YELLOW,      // yellow on for given  time
  ST_RED,         // light red
  ST_RED1,         // light red
};

//  state of statemachine for block 1; initial value green
LIGHTSTATES block1State  = ST_GREEN;

// current time
static unsigned long currentTime;

void  loop()
{
  // get current time
  currentTime = millis();

  // read  sensors

  int valA1 = digitalRead(sensePin1);
  int valA2 = digitalRead(sensePin2);


  //Serial.print('valA1');
  //Serial.println("");
  //Serial.print('valA2');
  //Serial.println("");
   //Serial.println("");
     //delay(1500);
  switch (block1State)
  {
    // show green light
    // we will switch  to red if sensors are triggered
    case ST_GREEN:
      block1Green(valA1,  valA2);
      break;
    case ST_YELLOWFLASH:
      block1YellowFlash(valA1,  valA2);
      break;
    case ST_YELLOW:
      block1Yellow(valA1, valA2);
      break;
    case ST_RED:
      block1Red(valA1, valA2);
      break;
      case ST_RED1:
      block1Red1(valA1, valA2);
      break;
  }
}

/*
  switch green light on for block 1
  'wait' for sensors to trigger and switches  to red
  input: values of sensors A1 and A2
*/
void block1Green(int valA1,  int valA2)
{
  digitalWrite(ledPinGRN, LOW);
  digitalWrite(ledPinYEL,  HIGH);
  digitalWrite(ledPinRED, HIGH);

  if (valA1 == LOW && valA2 ==  HIGH)
  {
    // change state to red
    block1State = ST_RED;}
  else  if (valA1 == HIGH && valA2 == LOW)
  {
    // change state to red
    block1State  = ST_RED1;
  }
  }


/*
  flash yellow led 10 times for block  1
  after that, switch to steady yellow
  input: values of sensors A1 and  A2; both are not used but added for consistency in the calls to the light functions
*/
void  block1YellowFlash(int valA1, int valA2)
{
  // on and off duration
  const  unsigned long duration = 500;
  // number of flashes
  const byte numFlashes  = 10;

  // remember last time that we changed from 'yellow on' to 'yellow  off' or vice versa
  static unsigned long startTime = 0;
  // keep a counter  for the number of flashes
  static byte counter = 0;

  // if called after  coming from red
  if (startTime == 0)
  {
    // switch yellow on
    digitalWrite(ledPinGRN,  HIGH);
    digitalWrite(ledPinYEL, LOW);
    digitalWrite(ledPinRED, HIGH);

    // start timing
    startTime = currentTime;

    // nothing else to  do
    return;
  }

  // if it's time to toggle the yellow led
  //  based on blink without delay
  if (currentTime - startTime >= duration)
  {
    // set start time
    startTime += duration;

    // toggle the yellow  led
    digitalWrite(ledPinYEL, !digitalRead(ledPinYEL));

    // increment  the counter
    counter++;
  }

  if (counter > numFlashes * 2)
  {
    // reset variables
    // as a result, the next time this function  is called, the sequence is started from scratch
    startTime = 0;
    counter  = 0;

    // change state to steady yellow
    block1State = ST_YELLOW;
  }
}

/*
  switch yellow light on for N seconds for block 1
  after  that, switch to green
  input: values of sensors A1 and A2; both are not used  but added for consistency in the calls to the light functions
*/
void block1Yellow(int  valA1, int valA2)
{
  // duration for yellow on
  const unsigned long duration  = 2000;
  // start time of delay
  static unsigned long startTime = 0;

  if (startTime == 0)
  {
    // switch yellow on
    digitalWrite(ledPinGRN,  HIGH);
    digitalWrite(ledPinYEL, LOW);
    digitalWrite(ledPinRED, HIGH);

    // set start time of delay
    startTime = currentTime;

    // nothing  else to do
    return;
  }

  // if N milliseconds passed
  if (currentTime  - startTime >= duration)
  {
    // reset variables so next call to this sequence  will start sequence from scratch
    startTime = 0;
    // change state to  green
    block1State = ST_GREEN;
  }
}

/*
  switch red light  on for block1
  'wait' for sensors to trigger and switches to yellow flash
  input: values of sensors A1 and A2
*/
void block1Red(int valA1, int valA2)
{
  digitalWrite(ledPinGRN, HIGH);
  digitalWrite(ledPinYEL, HIGH);
  digitalWrite(ledPinRED,  LOW);
  if (valA1 == HIGH && valA2 == LOW)
  {
    // change state to yellow  flash
    block1State = ST_YELLOWFLASH;
  }
}
void block1Red1(int valA1,  int valA2)
{
  digitalWrite(ledPinGRN, HIGH);
  digitalWrite(ledPinYEL,  HIGH);
  digitalWrite(ledPinRED, LOW);
  if (valA1 == LOW && valA2 == HIGH)
  {
    // change state to yellow flash
    block1State = ST_YELLOWFLASH;
  }

}

IR Block Detector

arduino

Block detection for model trains.

1// initilize the Digital input pins
2int sensePin1 = 7;
3int sensePin2  = 4;
4//Initilize the OUTPUT pins for the RED,GREEN and YELLOW lights.
5int  ledPinGRN = 10;
6int ledPinYEL = 11;
7int ledPinRED = 12;
8
9
10
11void  setup() {
12  analogReference(DEFAULT); //isn't necessary
13  Serial.begin(9600);
14  pinMode(ledPinGRN, OUTPUT);//Set pin MODES for lights
15  pinMode(ledPinYEL,  OUTPUT);//Set pin MODES for lights
16  pinMode(ledPinRED, OUTPUT);//Set pin MODES  for lights
17
18}
19
20enum LIGHTSTATES
21{
22  ST_GREEN,       // light green
23  ST_YELLOWFLASH, // light yellow flash
24  ST_YELLOW,      // yellow on for given  time
25  ST_RED,         // light red
26  ST_RED1,         // light red
27};
28
29//  state of statemachine for block 1; initial value green
30LIGHTSTATES block1State  = ST_GREEN;
31
32// current time
33static unsigned long currentTime;
34
35void  loop()
36{
37  // get current time
38  currentTime = millis();
39
40  // read  sensors
41
42  int valA1 = digitalRead(sensePin1);
43  int valA2 = digitalRead(sensePin2);
44
45
46  //Serial.print('valA1');
47  //Serial.println("");
48  //Serial.print('valA2');
49  //Serial.println("");
50   //Serial.println("");
51     //delay(1500);
52  switch (block1State)
53  {
54    // show green light
55    // we will switch  to red if sensors are triggered
56    case ST_GREEN:
57      block1Green(valA1,  valA2);
58      break;
59    case ST_YELLOWFLASH:
60      block1YellowFlash(valA1,  valA2);
61      break;
62    case ST_YELLOW:
63      block1Yellow(valA1, valA2);
64      break;
65    case ST_RED:
66      block1Red(valA1, valA2);
67      break;
68      case ST_RED1:
69      block1Red1(valA1, valA2);
70      break;
71  }
72}
73
74/*
75  switch green light on for block 1
76  'wait' for sensors to trigger and switches  to red
77  input: values of sensors A1 and A2
78*/
79void block1Green(int valA1,  int valA2)
80{
81  digitalWrite(ledPinGRN, LOW);
82  digitalWrite(ledPinYEL,  HIGH);
83  digitalWrite(ledPinRED, HIGH);
84
85  if (valA1 == LOW && valA2 ==  HIGH)
86  {
87    // change state to red
88    block1State = ST_RED;}
89  else  if (valA1 == HIGH && valA2 == LOW)
90  {
91    // change state to red
92    block1State  = ST_RED1;
93  }
94  }
95
96
97/*
98  flash yellow led 10 times for block  1
99  after that, switch to steady yellow
100  input: values of sensors A1 and  A2; both are not used but added for consistency in the calls to the light functions
101*/
102void  block1YellowFlash(int valA1, int valA2)
103{
104  // on and off duration
105  const  unsigned long duration = 500;
106  // number of flashes
107  const byte numFlashes  = 10;
108
109  // remember last time that we changed from 'yellow on' to 'yellow  off' or vice versa
110  static unsigned long startTime = 0;
111  // keep a counter  for the number of flashes
112  static byte counter = 0;
113
114  // if called after  coming from red
115  if (startTime == 0)
116  {
117    // switch yellow on
118    digitalWrite(ledPinGRN,  HIGH);
119    digitalWrite(ledPinYEL, LOW);
120    digitalWrite(ledPinRED, HIGH);
121
122    // start timing
123    startTime = currentTime;
124
125    // nothing else to  do
126    return;
127  }
128
129  // if it's time to toggle the yellow led
130  //  based on blink without delay
131  if (currentTime - startTime >= duration)
132  {
133    // set start time
134    startTime += duration;
135
136    // toggle the yellow  led
137    digitalWrite(ledPinYEL, !digitalRead(ledPinYEL));
138
139    // increment  the counter
140    counter++;
141  }
142
143  if (counter > numFlashes * 2)
144  {
145    // reset variables
146    // as a result, the next time this function  is called, the sequence is started from scratch
147    startTime = 0;
148    counter  = 0;
149
150    // change state to steady yellow
151    block1State = ST_YELLOW;
152  }
153}
154
155/*
156  switch yellow light on for N seconds for block 1
157  after  that, switch to green
158  input: values of sensors A1 and A2; both are not used  but added for consistency in the calls to the light functions
159*/
160void block1Yellow(int  valA1, int valA2)
161{
162  // duration for yellow on
163  const unsigned long duration  = 2000;
164  // start time of delay
165  static unsigned long startTime = 0;
166
167  if (startTime == 0)
168  {
169    // switch yellow on
170    digitalWrite(ledPinGRN,  HIGH);
171    digitalWrite(ledPinYEL, LOW);
172    digitalWrite(ledPinRED, HIGH);
173
174    // set start time of delay
175    startTime = currentTime;
176
177    // nothing  else to do
178    return;
179  }
180
181  // if N milliseconds passed
182  if (currentTime  - startTime >= duration)
183  {
184    // reset variables so next call to this sequence  will start sequence from scratch
185    startTime = 0;
186    // change state to  green
187    block1State = ST_GREEN;
188  }
189}
190
191/*
192  switch red light  on for block1
193  'wait' for sensors to trigger and switches to yellow flash
194  input: values of sensors A1 and A2
195*/
196void block1Red(int valA1, int valA2)
197{
198  digitalWrite(ledPinGRN, HIGH);
199  digitalWrite(ledPinYEL, HIGH);
200  digitalWrite(ledPinRED,  LOW);
201  if (valA1 == HIGH && valA2 == LOW)
202  {
203    // change state to yellow  flash
204    block1State = ST_YELLOWFLASH;
205  }
206}
207void block1Red1(int valA1,  int valA2)
208{
209  digitalWrite(ledPinGRN, HIGH);
210  digitalWrite(ledPinYEL,  HIGH);
211  digitalWrite(ledPinRED, LOW);
212  if (valA1 == LOW && valA2 == HIGH)
213  {
214    // change state to yellow flash
215    block1State = ST_YELLOWFLASH;
216  }
217
218}
219
220
221
222
223

// initilize the Digital input pins
int sensePin1 = 7;
int sensePin2  = 4;
//Initilize the OUTPUT pins for the RED,GREEN and YELLOW lights.
int  ledPinGRN = 10;
int ledPinYEL = 11;
int ledPinRED = 12;



void  setup() {
  analogReference(DEFAULT); //isn't necessary
  Serial.begin(9600);
  pinMode(ledPinGRN, OUTPUT);//Set pin MODES for lights
  pinMode(ledPinYEL,  OUTPUT);//Set pin MODES for lights
  pinMode(ledPinRED, OUTPUT);//Set pin MODES  for lights

}

enum LIGHTSTATES
{
  ST_GREEN,       // light green
  ST_YELLOWFLASH, // light yellow flash
  ST_YELLOW,      // yellow on for given  time
  ST_RED,         // light red
  ST_RED1,         // light red
};

//  state of statemachine for block 1; initial value green
LIGHTSTATES block1State  = ST_GREEN;

// current time
static unsigned long currentTime;

void  loop()
{
  // get current time
  currentTime = millis();

  // read  sensors

  int valA1 = digitalRead(sensePin1);
  int valA2 = digitalRead(sensePin2);


  //Serial.print('valA1');
  //Serial.println("");
  //Serial.print('valA2');
  //Serial.println("");
   //Serial.println("");
     //delay(1500);
  switch (block1State)
  {
    // show green light
    // we will switch  to red if sensors are triggered
    case ST_GREEN:
      block1Green(valA1,  valA2);
      break;
    case ST_YELLOWFLASH:
      block1YellowFlash(valA1,  valA2);
      break;
    case ST_YELLOW:
      block1Yellow(valA1, valA2);
      break;
    case ST_RED:
      block1Red(valA1, valA2);
      break;
      case ST_RED1:
      block1Red1(valA1, valA2);
      break;
  }
}

/*
  switch green light on for block 1
  'wait' for sensors to trigger and switches  to red
  input: values of sensors A1 and A2
*/
void block1Green(int valA1,  int valA2)
{
  digitalWrite(ledPinGRN, LOW);
  digitalWrite(ledPinYEL,  HIGH);
  digitalWrite(ledPinRED, HIGH);

  if (valA1 == LOW && valA2 ==  HIGH)
  {
    // change state to red
    block1State = ST_RED;}
  else  if (valA1 == HIGH && valA2 == LOW)
  {
    // change state to red
    block1State  = ST_RED1;
  }
  }


/*
  flash yellow led 10 times for block  1
  after that, switch to steady yellow
  input: values of sensors A1 and  A2; both are not used but added for consistency in the calls to the light functions
*/
void  block1YellowFlash(int valA1, int valA2)
{
  // on and off duration
  const  unsigned long duration = 500;
  // number of flashes
  const byte numFlashes  = 10;

  // remember last time that we changed from 'yellow on' to 'yellow  off' or vice versa
  static unsigned long startTime = 0;
  // keep a counter  for the number of flashes
  static byte counter = 0;

  // if called after  coming from red
  if (startTime == 0)
  {
    // switch yellow on
    digitalWrite(ledPinGRN,  HIGH);
    digitalWrite(ledPinYEL, LOW);
    digitalWrite(ledPinRED, HIGH);

    // start timing
    startTime = currentTime;

    // nothing else to  do
    return;
  }

  // if it's time to toggle the yellow led
  //  based on blink without delay
  if (currentTime - startTime >= duration)
  {
    // set start time
    startTime += duration;

    // toggle the yellow  led
    digitalWrite(ledPinYEL, !digitalRead(ledPinYEL));

    // increment  the counter
    counter++;
  }

  if (counter > numFlashes * 2)
  {
    // reset variables
    // as a result, the next time this function  is called, the sequence is started from scratch
    startTime = 0;
    counter  = 0;

    // change state to steady yellow
    block1State = ST_YELLOW;
  }
}

/*
  switch yellow light on for N seconds for block 1
  after  that, switch to green
  input: values of sensors A1 and A2; both are not used  but added for consistency in the calls to the light functions
*/
void block1Yellow(int  valA1, int valA2)
{
  // duration for yellow on
  const unsigned long duration  = 2000;
  // start time of delay
  static unsigned long startTime = 0;

  if (startTime == 0)
  {
    // switch yellow on
    digitalWrite(ledPinGRN,  HIGH);
    digitalWrite(ledPinYEL, LOW);
    digitalWrite(ledPinRED, HIGH);

    // set start time of delay
    startTime = currentTime;

    // nothing  else to do
    return;
  }

  // if N milliseconds passed
  if (currentTime  - startTime >= duration)
  {
    // reset variables so next call to this sequence  will start sequence from scratch
    startTime = 0;
    // change state to  green
    block1State = ST_GREEN;
  }
}

/*
  switch red light  on for block1
  'wait' for sensors to trigger and switches to yellow flash
  input: values of sensors A1 and A2
*/
void block1Red(int valA1, int valA2)
{
  digitalWrite(ledPinGRN, HIGH);
  digitalWrite(ledPinYEL, HIGH);
  digitalWrite(ledPinRED,  LOW);
  if (valA1 == HIGH && valA2 == LOW)
  {
    // change state to yellow  flash
    block1State = ST_YELLOWFLASH;
  }
}
void block1Red1(int valA1,  int valA2)
{
  digitalWrite(ledPinGRN, HIGH);
  digitalWrite(ledPinYEL,  HIGH);
  digitalWrite(ledPinRED, LOW);
  if (valA1 == LOW && valA2 == HIGH)
  {
    // change state to yellow flash
    block1State = ST_YELLOWFLASH;
  }

}

BLOCK DETECTION 3 ASPECT LIGHT CONTROL

arduino

This is my BLOCK DETECTION 3 ASPECT LIGHT CONTROL program. It detecets the train entering and leaving a block of track and changes the lights accordingly.

1// initilize the Digital input pins
2int sensePin1 = 7;
3int sensePin2
4  = 4;
5//Initilize the OUTPUT pins for the RED,GREEN and YELLOW lights.
6int
7  ledPinGRN = 10;
8int ledPinYEL = 11;
9int ledPinRED = 12;
10
11
12
13void
14  setup() {
15  analogReference(DEFAULT); //isn't necessary
16  Serial.begin(9600);
17
18  pinMode(ledPinGRN, OUTPUT);//Set pin MODES for lights
19  pinMode(ledPinYEL,
20  OUTPUT);//Set pin MODES for lights
21  pinMode(ledPinRED, OUTPUT);//Set pin MODES
22  for lights
23
24}
25
26enum LIGHTSTATES
27{
28  ST_GREEN,       // light green
29
30  ST_YELLOWFLASH, // light yellow flash
31  ST_YELLOW,      // yellow on for given
32  time
33  ST_RED,         // light red
34  ST_RED1,         // light red
35};
36
37//
38  state of statemachine for block 1; initial value green
39LIGHTSTATES block1State
40  = ST_GREEN;
41
42// current time
43static unsigned long currentTime;
44
45void
46  loop()
47{
48  // get current time
49  currentTime = millis();
50
51  // read
52  sensors
53
54  int valA1 = digitalRead(sensePin1);
55  int valA2 = digitalRead(sensePin2);
56
57
58
59  //Serial.print('valA1');
60  //Serial.println("");
61  //Serial.print('valA2');
62
63  //Serial.println("");
64   //Serial.println("");
65     //delay(1500);
66
67  switch (block1State)
68  {
69    // show green light
70    // we will switch
71  to red if sensors are triggered
72    case ST_GREEN:
73      block1Green(valA1,
74  valA2);
75      break;
76    case ST_YELLOWFLASH:
77      block1YellowFlash(valA1,
78  valA2);
79      break;
80    case ST_YELLOW:
81      block1Yellow(valA1, valA2);
82
83      break;
84    case ST_RED:
85      block1Red(valA1, valA2);
86      break;
87
88      case ST_RED1:
89      block1Red1(valA1, valA2);
90      break;
91  }
92}
93
94/*
95
96  switch green light on for block 1
97  'wait' for sensors to trigger and switches
98  to red
99  input: values of sensors A1 and A2
100*/
101void block1Green(int valA1,
102  int valA2)
103{
104  digitalWrite(ledPinGRN, LOW);
105  digitalWrite(ledPinYEL,
106  HIGH);
107  digitalWrite(ledPinRED, HIGH);
108
109  if (valA1 == LOW && valA2 ==
110  HIGH)
111  {
112    // change state to red
113    block1State = ST_RED;}
114  else
115  if (valA1 == HIGH && valA2 == LOW)
116  {
117    // change state to red
118    block1State
119  = ST_RED1;
120  }
121  }
122
123
124/*
125  flash yellow led 10 times for block
126  1
127  after that, switch to steady yellow
128  input: values of sensors A1 and
129  A2; both are not used but added for consistency in the calls to the light functions
130*/
131void
132  block1YellowFlash(int valA1, int valA2)
133{
134  // on and off duration
135  const
136  unsigned long duration = 500;
137  // number of flashes
138  const byte numFlashes
139  = 10;
140
141  // remember last time that we changed from 'yellow on' to 'yellow
142  off' or vice versa
143  static unsigned long startTime = 0;
144  // keep a counter
145  for the number of flashes
146  static byte counter = 0;
147
148  // if called after
149  coming from red
150  if (startTime == 0)
151  {
152    // switch yellow on
153    digitalWrite(ledPinGRN,
154  HIGH);
155    digitalWrite(ledPinYEL, LOW);
156    digitalWrite(ledPinRED, HIGH);
157
158
159    // start timing
160    startTime = currentTime;
161
162    // nothing else to
163  do
164    return;
165  }
166
167  // if it's time to toggle the yellow led
168  //
169  based on blink without delay
170  if (currentTime - startTime >= duration)
171  {
172
173    // set start time
174    startTime += duration;
175
176    // toggle the yellow
177  led
178    digitalWrite(ledPinYEL, !digitalRead(ledPinYEL));
179
180    // increment
181  the counter
182    counter++;
183  }
184
185  if (counter > numFlashes * 2)
186
187  {
188    // reset variables
189    // as a result, the next time this function
190  is called, the sequence is started from scratch
191    startTime = 0;
192    counter
193  = 0;
194
195    // change state to steady yellow
196    block1State = ST_YELLOW;
197
198  }
199}
200
201/*
202  switch yellow light on for N seconds for block 1
203  after
204  that, switch to green
205  input: values of sensors A1 and A2; both are not used
206  but added for consistency in the calls to the light functions
207*/
208void block1Yellow(int
209  valA1, int valA2)
210{
211  // duration for yellow on
212  const unsigned long duration
213  = 2000;
214  // start time of delay
215  static unsigned long startTime = 0;
216
217
218  if (startTime == 0)
219  {
220    // switch yellow on
221    digitalWrite(ledPinGRN,
222  HIGH);
223    digitalWrite(ledPinYEL, LOW);
224    digitalWrite(ledPinRED, HIGH);
225
226
227    // set start time of delay
228    startTime = currentTime;
229
230    // nothing
231  else to do
232    return;
233  }
234
235  // if N milliseconds passed
236  if (currentTime
237  - startTime >= duration)
238  {
239    // reset variables so next call to this sequence
240  will start sequence from scratch
241    startTime = 0;
242    // change state to
243  green
244    block1State = ST_GREEN;
245  }
246}
247
248/*
249  switch red light
250  on for block1
251  'wait' for sensors to trigger and switches to yellow flash
252
253  input: values of sensors A1 and A2
254*/
255void block1Red(int valA1, int valA2)
256{
257
258  digitalWrite(ledPinGRN, HIGH);
259  digitalWrite(ledPinYEL, HIGH);
260  digitalWrite(ledPinRED,
261  LOW);
262  if (valA1 == HIGH && valA2 == LOW)
263  {
264    // change state to yellow
265  flash
266    block1State = ST_YELLOWFLASH;
267  }
268}
269void block1Red1(int valA1,
270  int valA2)
271{
272  digitalWrite(ledPinGRN, HIGH);
273  digitalWrite(ledPinYEL,
274  HIGH);
275  digitalWrite(ledPinRED, LOW);
276  if (valA1 == LOW && valA2 == HIGH)
277
278  {
279    // change state to yellow flash
280    block1State = ST_YELLOWFLASH;
281
282  }
283
284}
285
286

// initilize the Digital input pins
int sensePin1 = 7;
int sensePin2
  = 4;
//Initilize the OUTPUT pins for the RED,GREEN and YELLOW lights.
int
  ledPinGRN = 10;
int ledPinYEL = 11;
int ledPinRED = 12;



void
  setup() {
  analogReference(DEFAULT); //isn't necessary
  Serial.begin(9600);

  pinMode(ledPinGRN, OUTPUT);//Set pin MODES for lights
  pinMode(ledPinYEL,
  OUTPUT);//Set pin MODES for lights
  pinMode(ledPinRED, OUTPUT);//Set pin MODES
  for lights

}

enum LIGHTSTATES
{
  ST_GREEN,       // light green

  ST_YELLOWFLASH, // light yellow flash
  ST_YELLOW,      // yellow on for given
  time
  ST_RED,         // light red
  ST_RED1,         // light red
};

//
  state of statemachine for block 1; initial value green
LIGHTSTATES block1State
  = ST_GREEN;

// current time
static unsigned long currentTime;

void
  loop()
{
  // get current time
  currentTime = millis();

  // read
  sensors

  int valA1 = digitalRead(sensePin1);
  int valA2 = digitalRead(sensePin2);



  //Serial.print('valA1');
  //Serial.println("");
  //Serial.print('valA2');

  //Serial.println("");
   //Serial.println("");
     //delay(1500);

  switch (block1State)
  {
    // show green light
    // we will switch
  to red if sensors are triggered
    case ST_GREEN:
      block1Green(valA1,
  valA2);
      break;
    case ST_YELLOWFLASH:
      block1YellowFlash(valA1,
  valA2);
      break;
    case ST_YELLOW:
      block1Yellow(valA1, valA2);

      break;
    case ST_RED:
      block1Red(valA1, valA2);
      break;

      case ST_RED1:
      block1Red1(valA1, valA2);
      break;
  }
}

/*

  switch green light on for block 1
  'wait' for sensors to trigger and switches
  to red
  input: values of sensors A1 and A2
*/
void block1Green(int valA1,
  int valA2)
{
  digitalWrite(ledPinGRN, LOW);
  digitalWrite(ledPinYEL,
  HIGH);
  digitalWrite(ledPinRED, HIGH);

  if (valA1 == LOW && valA2 ==
  HIGH)
  {
    // change state to red
    block1State = ST_RED;}
  else
  if (valA1 == HIGH && valA2 == LOW)
  {
    // change state to red
    block1State
  = ST_RED1;
  }
  }


/*
  flash yellow led 10 times for block
  1
  after that, switch to steady yellow
  input: values of sensors A1 and
  A2; both are not used but added for consistency in the calls to the light functions
*/
void
  block1YellowFlash(int valA1, int valA2)
{
  // on and off duration
  const
  unsigned long duration = 500;
  // number of flashes
  const byte numFlashes
  = 10;

  // remember last time that we changed from 'yellow on' to 'yellow
  off' or vice versa
  static unsigned long startTime = 0;
  // keep a counter
  for the number of flashes
  static byte counter = 0;

  // if called after
  coming from red
  if (startTime == 0)
  {
    // switch yellow on
    digitalWrite(ledPinGRN,
  HIGH);
    digitalWrite(ledPinYEL, LOW);
    digitalWrite(ledPinRED, HIGH);


    // start timing
    startTime = currentTime;

    // nothing else to
  do
    return;
  }

  // if it's time to toggle the yellow led
  //
  based on blink without delay
  if (currentTime - startTime >= duration)
  {

    // set start time
    startTime += duration;

    // toggle the yellow
  led
    digitalWrite(ledPinYEL, !digitalRead(ledPinYEL));

    // increment
  the counter
    counter++;
  }

  if (counter > numFlashes * 2)

  {
    // reset variables
    // as a result, the next time this function
  is called, the sequence is started from scratch
    startTime = 0;
    counter
  = 0;

    // change state to steady yellow
    block1State = ST_YELLOW;

  }
}

/*
  switch yellow light on for N seconds for block 1
  after
  that, switch to green
  input: values of sensors A1 and A2; both are not used
  but added for consistency in the calls to the light functions
*/
void block1Yellow(int
  valA1, int valA2)
{
  // duration for yellow on
  const unsigned long duration
  = 2000;
  // start time of delay
  static unsigned long startTime = 0;


  if (startTime == 0)
  {
    // switch yellow on
    digitalWrite(ledPinGRN,
  HIGH);
    digitalWrite(ledPinYEL, LOW);
    digitalWrite(ledPinRED, HIGH);


    // set start time of delay
    startTime = currentTime;

    // nothing
  else to do
    return;
  }

  // if N milliseconds passed
  if (currentTime
  - startTime >= duration)
  {
    // reset variables so next call to this sequence
  will start sequence from scratch
    startTime = 0;
    // change state to
  green
    block1State = ST_GREEN;
  }
}

/*
  switch red light
  on for block1
  'wait' for sensors to trigger and switches to yellow flash

  input: values of sensors A1 and A2
*/
void block1Red(int valA1, int valA2)
{

  digitalWrite(ledPinGRN, HIGH);
  digitalWrite(ledPinYEL, HIGH);
  digitalWrite(ledPinRED,
  LOW);
  if (valA1 == HIGH && valA2 == LOW)
  {
    // change state to yellow
  flash
    block1State = ST_YELLOWFLASH;
  }
}
void block1Red1(int valA1,
  int valA2)
{
  digitalWrite(ledPinGRN, HIGH);
  digitalWrite(ledPinYEL,
  HIGH);
  digitalWrite(ledPinRED, LOW);
  if (valA1 == LOW && valA2 == HIGH)

  {
    // change state to yellow flash
    block1State = ST_YELLOWFLASH;

  }

}

Comments

Only logged in users can leave comments

lecurtis

0 Followers

•

0 Projects

Intro
