Mini Christmas IoT Show!

Mini Christmas IoT Show! © GPL3+

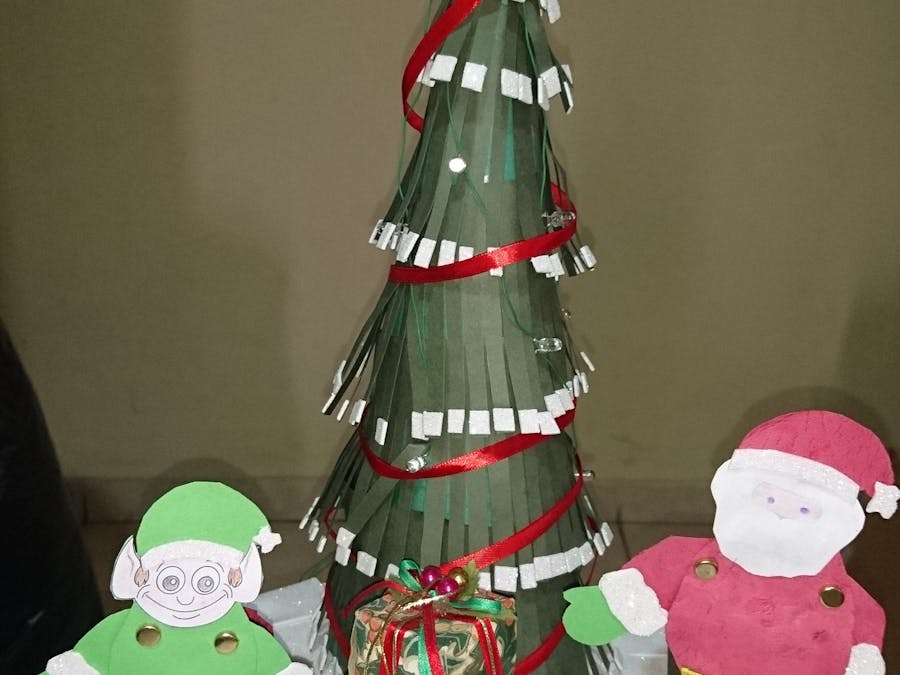

Handmade MKR1000 IoT Christmas show made of colored cardboard paper.

  • 1,167 views
  • 1 comment
  • 1 respect

Components and supplies

Necessary tools and machines

09507 01
Soldering iron (generic)

Apps and online services

Ide web
Arduino IDE
Flheriar 400x400
MIT App Inventor
you can download the app at https://docs.google.com/uc?export=download&id=0Bxu35vkFQBFcdU4xeGFudWFPemc

About this project

This project was made to be an interactive Christmas decoration, the tree LEDs, music played and the arms of Santa and Elf are all controlled using a phone app created using MIT App Inventor that communicates with the Arduino MKR1000.

First I made a cone shaped paper and painted it green.

Then I have added green cardboard to create leaves of the tree.

Then creating white snow effect using white cardboard.

Soldering LED lines I have made three lines:

Creating the star on top of the tree.

Then I have used gift paper to make gifts under the tree.

I have cut down the shapes of both Santa and Elf and connected servo motors to each arm of them.

Added some decoration white paper to the table and red ribbon on the tree.

Code

Mini Christmas ShowArduino
#include <DFRobotDFPlayerMini.h> //DFPlayer MP3 Module control library
#include <Servo.h> //Servo motors control library
#include <WiFi101.h> //Wifi library

//Defining constants for pins
//Santa and Elf Outputs
const int SantaRHand = 0;
const int SantaLHand = 1;
const int ElfRHand = 2;
const int ElfLHand = 3;
//Tree Star pins
const int TreeStar1 = 6;
const int TreeStar2 = 7;
const int TreeStar3 = 8;
//Tree Star Patterns
const int TreeLine1 = 9;
const int TreeLine2 = 10;
const int TreeLine3 = 11;
//Defining variables
//Defining Tree Pattern Variable
int TreePattern = 1;
//Defining MP3 player variable
int CurrentSong =1;
DFRobotDFPlayerMini myDFPlayer; //Creating DFPlayer object

Servo myservo1; //Santa right hand instance
Servo myservo2; //Santa left hand instance
Servo myservo3; //Elf right hand instance
Servo myservo4; //Elf left hand instance

char ssid[] = "YourSSIDName";      //  your network SSID (name)
char pass[] = "YourSSIDPassword";   // your network password
//int keyIndex = 0;                 // your network key Index number (needed only for WEP)
char current_state = 'a';
int status = WL_IDLE_STATUS;
WiFiServer server(80);

void setup() {
  Serial1.begin(9600); //Initializing serial communication to communicate with DFPlayer module
  //Set TreeLine Pins to Outputs
  pinMode(TreeLine1, OUTPUT);
  pinMode(TreeLine2, OUTPUT);
  pinMode(TreeLine3, OUTPUT);
  while(!myDFPlayer.begin(Serial1)){}  //Wait until DFPlayer starts
  myDFPlayer.volume(30);  //Setting the volume of DFPlayer 0-30
  myservo1.attach(SantaRHand);  //assigning servo objects to pins
  myservo2.attach(SantaLHand);
  myservo3.attach(ElfRHand);
  myservo4.attach(ElfLHand);

  // attempt to connect to Wifi network:
  while ( status != WL_CONNECTED) {
    // Connect to WPA/WPA2 network. Change this line if using open or WEP network:
    status = WiFi.begin(ssid, pass);
    // wait 10 seconds for connection:
    delay(10000);
  }
  server.begin();                           // start the web server on port 80
}

void loop() {
  ////////////////////////////////////////////////////////////////////////////////////////////



  WiFiClient client = server.available();   // listen for incoming clients

  if (client) {                             // if you get a client
    String currentLine = "";                // make a String to hold incoming data from the client
    while (client.connected()) {            // loop while the client's connected
      if (client.available()) {             // if there's bytes to read from the client,
        char c = client.read();             // read a byte, then
        if (c == '\n') {                    // if the byte is a newline character

          // if the current line is blank, you got two newline characters in a row.
          // that's the end of the client HTTP request, so send a response:
          if (currentLine.length() == 0) {
            // HTTP headers always start with a response code (e.g. HTTP/1.1 200 OK)
            // and a content-type so the client knows what's coming, then a blank line:
            client.println("HTTP/1.1 200 OK");
            client.println("Content-type:text/html");
            client.println();

            // the content of the HTTP response follows the header:
            //client.print("Click <a href=\"/H\">here</a> turn the LED on pin 6 on<br>");
            // client.print("Click <a href=\"/L\">here</a> turn the LED on pin 6 off<br>");
            //  client.print("Click <a href=\"/B\">here</a> Blink the LED on pin 6 On and Off<br>");
            // The HTTP response ends with another blank line:
            // client.println();

            // break out of the while loop:
            break;
          }
          else {      // if you got a newline, then clear currentLine:
            currentLine = "";
          }
        }
        else if (c != '\r') {    // if you got anything else but a carriage return character,
          currentLine += c;      // add it to the end of the currentLine
        }

        // Check to see if the client request

        if (currentLine.endsWith("GET /A")) {
          current_state = 'a';            // Show start request
          StartGreeting();  //Jump to greeting function (move hands)
          myDFPlayer.play(1); //play first song on SD card
        }
        if (currentLine.endsWith("GET /B")) {
          current_state = 'b';              // Show stop request
        }
        if (currentLine.endsWith("GET /C")) {
          StartGreeting();             // Greeting request
        }
        //Tree Pattern Change Button
        if (currentLine.endsWith("GET /D")) {
          TreePattern = 1;                  //Change tree pattern
        }
        if (currentLine.endsWith("GET /E")) {
          TreePattern = 2;                  //Change tree pattern
        }
        if (currentLine.endsWith("GET /F")) {
          TreePattern = 3;                  //Change tree pattern
        }
        //Song Change Button
        if (currentLine.endsWith("GET /G")) {
          myDFPlayer.play(1);              //Play First song
        }
        if (currentLine.endsWith("GET /H")) {
          myDFPlayer.play(3);              //Play Second Song
        }
        if (currentLine.endsWith("GET /I")) {
         myDFPlayer.pause();              //Stop Playing songs (Pause)
        }
      }
    }
    // close the connection:
    client.stop();

  }
  ////////////////////////////////////////////////////////////////////////////////////////////

  if (current_state == 'a') { // Show start request
    turnOnTree();
  }

  if (current_state == 'b') { // Show Stop request
  turnOffTree();
  myDFPlayer.pause();
  }

}


  void StartGreeting(){
    myDFPlayer.play(2); //Play greeting sound
    analogWrite(TreeStar1,100); //adjust color of the star
    analogWrite(TreeStar2,100);
    analogWrite(TreeStar3,100);
    digitalWrite(TreeLine1, HIGH);  //change tree lines pattern
    digitalWrite(TreeLine2, HIGH);
    digitalWrite(TreeLine3, HIGH);
    delay(6500);
    SantaElfHi(); //move hands
    SantaElfHi();
    SantaElfHi();
    analogWrite(TreeStar1,100);
    analogWrite(TreeStar2,100);
    analogWrite(TreeStar3,100);
    digitalWrite(TreeLine1, HIGH);
    digitalWrite(TreeLine2, HIGH);
    digitalWrite(TreeLine3, HIGH);
    delay(16000);
  }

void SantaElfHi(){ //Move Santa and Elf Hands
    myservo1.write(7);
    delay(30);
    myservo2.write(70);
    delay(30);
    myservo3.write(7);
    delay(30);
    myservo4.write(70);
    delay(30);
    analogWrite(TreeStar1,200);
    analogWrite(TreeStar2,100);
    analogWrite(TreeStar3,200);
    digitalWrite(TreeLine1, HIGH);
    digitalWrite(TreeLine2, HIGH);
    digitalWrite(TreeLine3, HIGH);
    delay(1000);
    analogWrite(TreeStar1,0);
    analogWrite(TreeStar2,0);
    analogWrite(TreeStar3,0);
    digitalWrite(TreeLine1, LOW);
    digitalWrite(TreeLine2, LOW);
    digitalWrite(TreeLine3, LOW);
    myservo1.write(70);
    delay(30);
    myservo2.write(7);
    delay(30);
    myservo3.write(70);
    delay(30);
    myservo4.write(7);
    delay(30);
    delay(1000);
}
void turnOffTree(){
      //turn off all leds
      analogWrite(TreeStar1,0);
      analogWrite(TreeStar2,0);
      analogWrite(TreeStar3,0);
      digitalWrite(TreeLine1, LOW);
      digitalWrite(TreeLine2, LOW);
      digitalWrite(TreeLine3, LOW);
}


void turnOnTree() {
  //turn on tree leds with the selected pattern
  switch (TreePattern) {
    case 1:
      analogWrite(TreeStar1,255);
      digitalWrite(TreeLine1, HIGH);
      delay(100);
      analogWrite(TreeStar1,0);
      analogWrite(TreeStar2,255);
      digitalWrite(TreeLine2, HIGH);
      delay(100);
      analogWrite(TreeStar2,0);
      analogWrite(TreeStar3,255);
      digitalWrite(TreeLine3, HIGH);
      delay(100);
      analogWrite(TreeStar3,0);
      digitalWrite(TreeLine1, LOW);
      digitalWrite(TreeLine2, LOW);
      digitalWrite(TreeLine3, LOW);
      delay(100);
      break;

    case 2:
      analogWrite(TreeStar1,255);
      analogWrite(TreeStar2,0);
      analogWrite(TreeStar3,255);
      digitalWrite(TreeLine1, HIGH);
      digitalWrite(TreeLine2, HIGH);
      digitalWrite(TreeLine3, HIGH);
      delay(100);
      analogWrite(TreeStar1,255);
      analogWrite(TreeStar2,255);
      analogWrite(TreeStar3,0);
      digitalWrite(TreeLine1, LOW);
      digitalWrite(TreeLine2, LOW);
      digitalWrite(TreeLine3, LOW);
      delay(50);
      analogWrite(TreeStar1,0);
      analogWrite(TreeStar2,255);
      analogWrite(TreeStar3,255);
      digitalWrite(TreeLine1, HIGH);
      digitalWrite(TreeLine2, HIGH);
      digitalWrite(TreeLine3, HIGH);
      delay(100);
      analogWrite(TreeStar1,255);
      analogWrite(TreeStar2,200);
      analogWrite(TreeStar3,100);
      digitalWrite(TreeLine1, LOW);
      digitalWrite(TreeLine2, LOW);
      digitalWrite(TreeLine3, HIGH);
      delay(100);
      analogWrite(TreeStar1,255);
      analogWrite(TreeStar2,0);
      analogWrite(TreeStar3,255);
      digitalWrite(TreeLine1, LOW);
      digitalWrite(TreeLine2, HIGH);
      digitalWrite(TreeLine3, LOW);
      delay(100);
      analogWrite(TreeStar1,255);
      analogWrite(TreeStar2,0);
      analogWrite(TreeStar3,0);
      digitalWrite(TreeLine1, HIGH);
      digitalWrite(TreeLine2, LOW);
      digitalWrite(TreeLine3, LOW);
      delay(100);
      analogWrite(TreeStar1,0);
      analogWrite(TreeStar3,255);
      digitalWrite(TreeLine1, LOW);
      digitalWrite(TreeLine2, LOW);
      digitalWrite(TreeLine3, LOW);
      delay(100);
      break;


    case 3:
      analogWrite(TreeStar1,255);
      digitalWrite(TreeLine1, HIGH);
      digitalWrite(TreeLine2, LOW);
      digitalWrite(TreeLine3, LOW);
      delay(60);
      analogWrite(TreeStar1,0);
      analogWrite(TreeStar2,255);
      digitalWrite(TreeLine1, LOW);
      digitalWrite(TreeLine2, HIGH);
      digitalWrite(TreeLine3, LOW);
      delay(60);
      analogWrite(TreeStar2,0);
      analogWrite(TreeStar3,255);
      digitalWrite(TreeLine1, LOW);
      digitalWrite(TreeLine2, LOW);
      digitalWrite(TreeLine3, HIGH);
      delay(60);
      analogWrite(TreeStar1,255);
      analogWrite(TreeStar3,255);
      digitalWrite(TreeLine1, LOW);
      digitalWrite(TreeLine2, HIGH);
      digitalWrite(TreeLine3, LOW);
      delay(60);
      break;
  }
}

Custom parts and enclosures

Elf Body shapes
Jk6aucbuli2lh84u8rew
Gift Box drawing
Xhjo284hpbmqyl3zhieg
Santa Dancing Template
Zfozyi5l3dl7guiqr6mi

Schematics

Mini Christmas show
Connection diagram
Gtimg6f2j6q4thhu9whf
