Industruino Proto Kit

Description

With this product you will be able to permanently install your Arduino application in no-time. Whether you use it for automation projects, data loggers or an interactive art installation, Industruino offers you ruggedness, plenty of features and low cost.

he Proto kit offers a large prototyping area to add your own circuitry as well as the following features:

1. A 14 pin IDC expansion port to easily connect external modules such as the new Ethernet module or your own pcb/module hosting the same connector.

2. A 2A switching voltage regulator taking any input voltage between 7-28V and generating a stable 5V output for the MCU and your own components.

The prototyping area is generally used for two purposes:

1. To integrate a one-off Arduino based project into a fully enclosed solution.

2. To prototype a design before making a custom Baseboard for mass production.

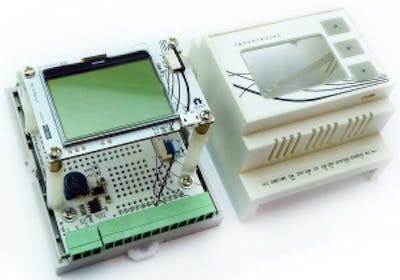

Industruino Proto is sold in form of a kit consisting of a topboard pcb, Proto baseboard pcb, mounting hardware and enclosure with button panel. With these parts it takes only about 3 minutes to assemble your Industruino.

Features

  • DIN-rail mountable
  • Fully enclosed
  • Prototyping area with re-routable connections using jumpers
  • 14p IDC expansion port
  • 8-28V->5V/2A switching voltage regulator.
  • All I/O and power available through detachable screw connectors
  • Level shifters for 5V tolerant I/O
  • 128x64 pixels LCD with backlight
  • 3 button membrane panel
  • Pre-loaded with interactive LCD menu firmware
  • TFTP ethernet bootloader (remote sketch upload)
  • Battety backed real-time clock (RTC)
  • Fully compatible with the Arduino IDE

Tech. Details

  • MCU type: ATSAMD21G18 (Arduino Zero/MKR equivalent)
  • Supply Voltage: 8-28V or 5V
  • I/O level: 3.3V / 5V tolerant (5V output with pull-ups)
  • Digital I/O Pins: 17
  • PWM Channels: 12
  • Analog Input Channels: 12
  • DC Current per I/O Pin: 7ma
  • Flash Memory: 256 KB
  • SRAM: 32 KB
  • EEPROM : 1 KB
  • Clock Speed: 48 MHz
  • U8G library compatible LCD
  • 3 button membrane panel connected to digital inputs D23-D25.
  • LCD backlight PWM controlled using output D26
  • Weight (kg): 0.18
  • Tariff no: 85371091
